What is Axure widget library?

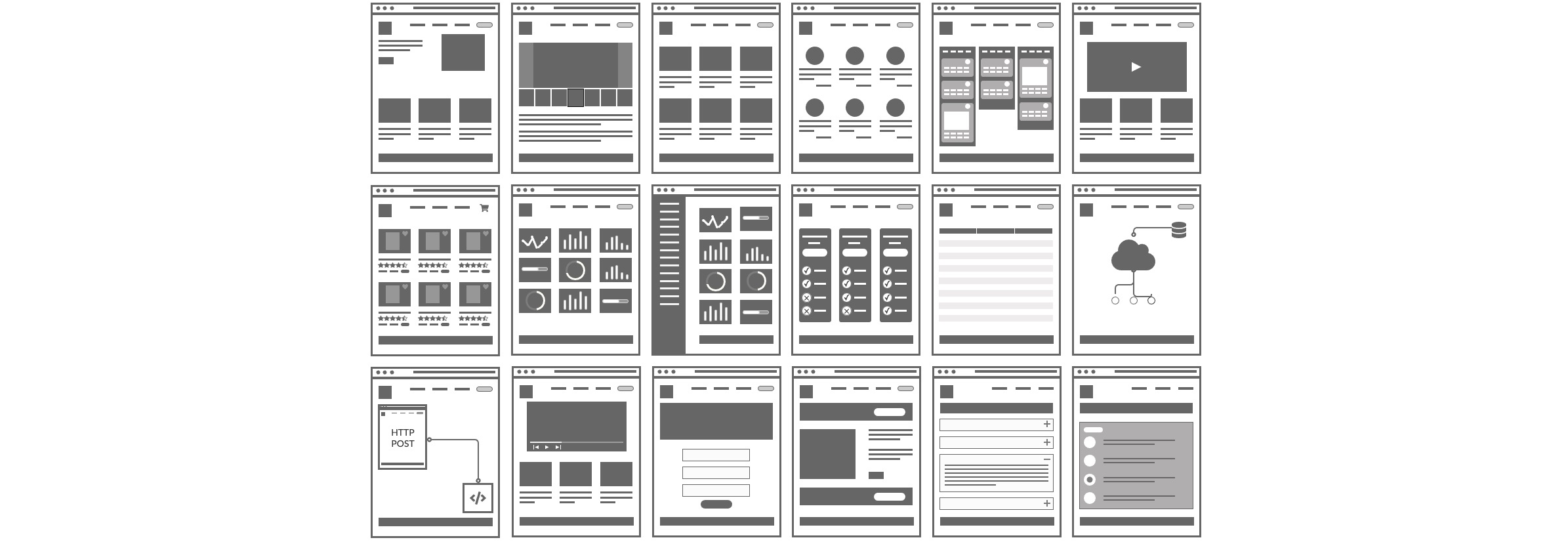

Excited to know how to use Axure widget library? Let’s get to know what is an Axure widget library first. One of the powers Axure has is the widget libraries. Axure comes with some predefined libraries that you can easily find in the Libraries panel. You can also add your own Axure widget libraries by following some simple instructions.  Axure widget library is a collection of pre-built widgets that can help you prototype faster.  In this article, we’ve prepared a simple yet comprehensive guideline on how to use Axure widget library, just for you.

How to use Axure widget library

How to use Axure widget library?

In order to use Axure widget library, you will need to add the Axure widget library from the Libraries section.  It’s quite easy to add the Axure widget library from the Axure RP application that you’ve been using. In this article, we’ll take Axure RP 9 and Axure RP 10 as an example.

How to Add Axure Widget Libary?

How to add Axure widget library in Axure RP 10?

Click on the three dots menu under the Library pane, select Add Local Library and select the desired Axure widget library. That’s all, and Axure RP will load the selected library. Once you’ve added the Axure widget library to your library, it’ll load all the time, unless you remove it.

How to use Axure widget library

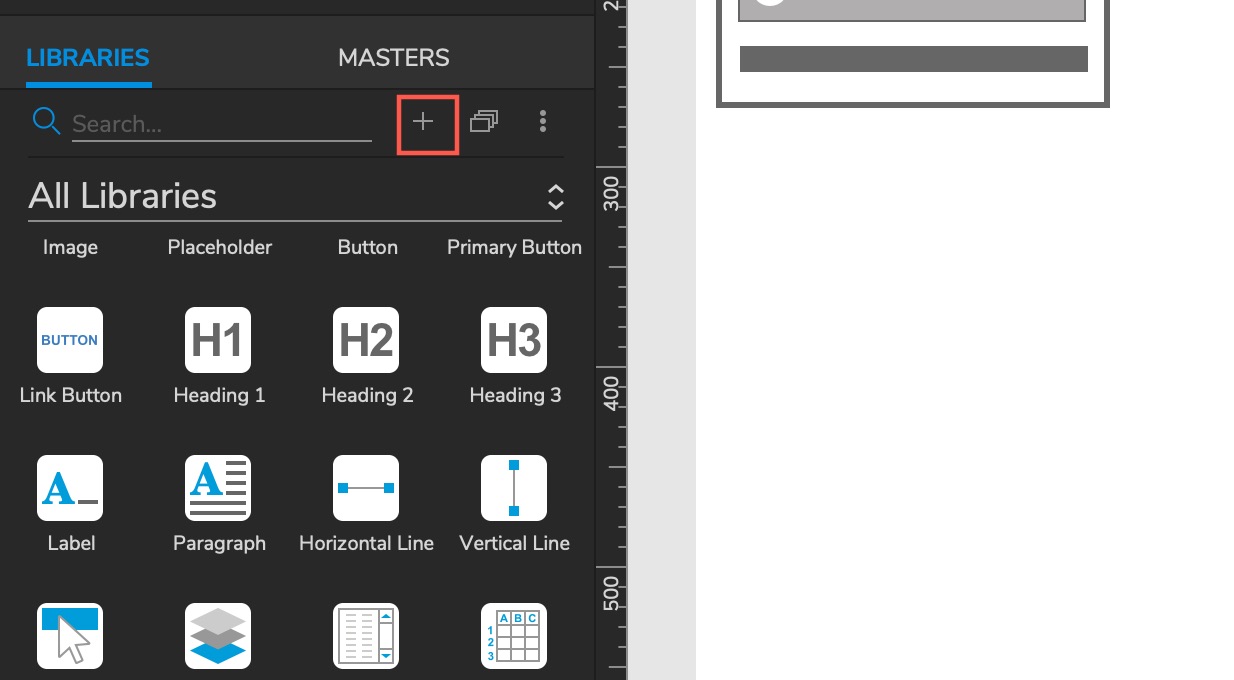

How to add Axure widget library in Axure RP 9?

Click on the + (Add library) icon under the Library pane and select the desired library that you want to add and Axure will load the library that you’ve selected. It’s quite a simple process.

How to use Axure widget library

Alternative way to Add Axure Widget Library

Axure tries to load the Axure widget libraries from the following default locations, every time you open up the Axure RP file. You can add your widget libraries in the following location and the Axure will load when you open it.

In Microsoft Windows: C:\Users\%USERNAME%\My Documents\Axure\Libraries

In Apple Mac: ~/Documents/Axure/Libraries

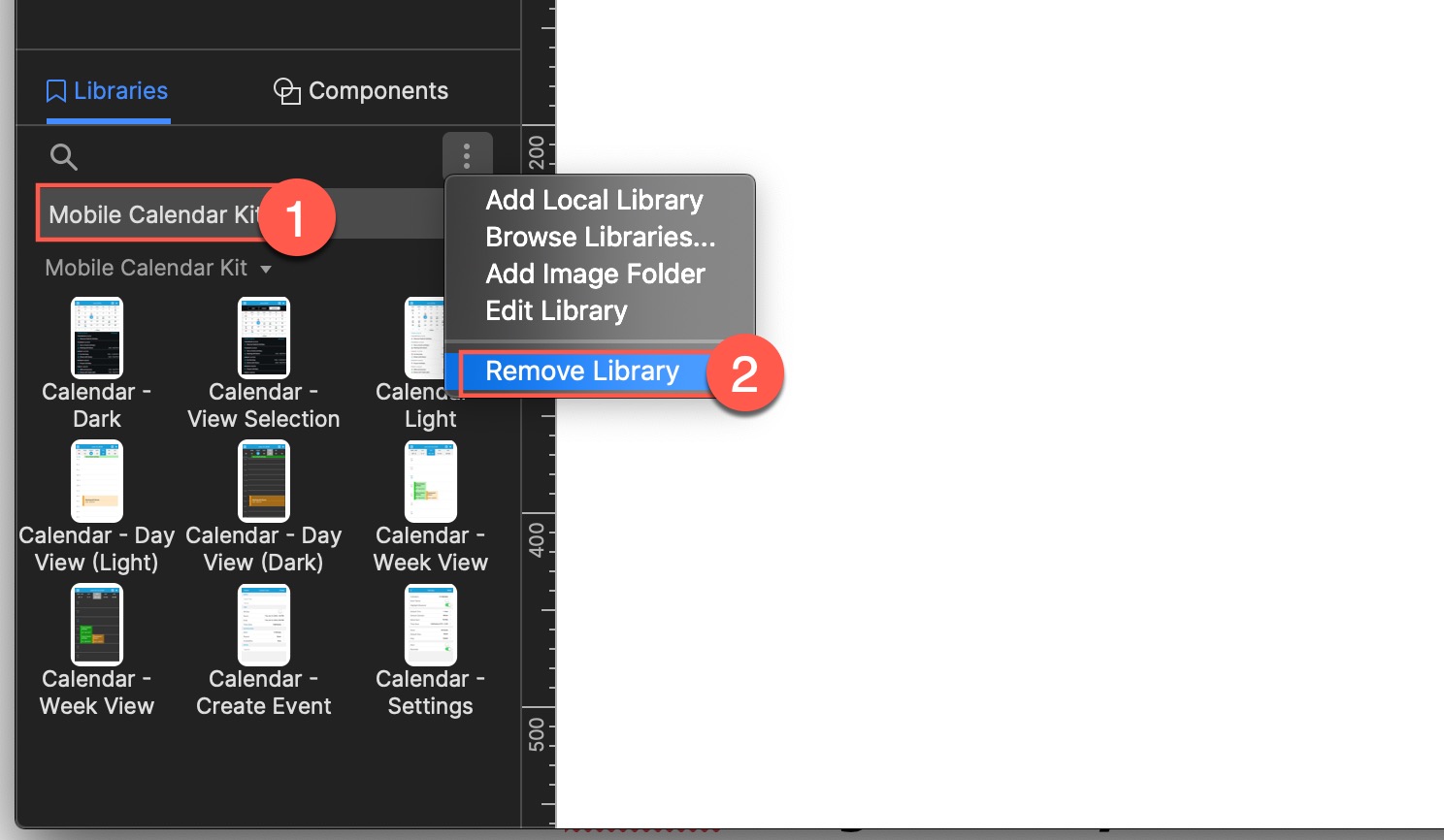

How to Remove Axure Widget Library?

No matter if you are using Axure RP 9 or Axure RP 10, you can remove an Axure widget library quite easily. Select the Axure widget library, click on the three dots menu under the Library pane and select the Remove Library option. Axure will remove the selected library from your list.

How to remove Axure widget library

How did you find our article on How to use Axure widget library? This article has covered the following:

  • How to use Axure widget library?
  • How to add Axure widget library? and
  • How to remove Axure widget library?

Let us know your feedback on this article on How to use Axure widget library? in the comment section below. We’ll keep on updating the article, whenever there is an update on Axure RP versions. Happy prototyping!! Download Axure widget libraries from Axure Market.

And if you want to get this amazing prototyping tool that helps you create complex prototypes without any coding knowledge, get it from the official Axure site.
